Yellow Alert Triangles not showing as usual.

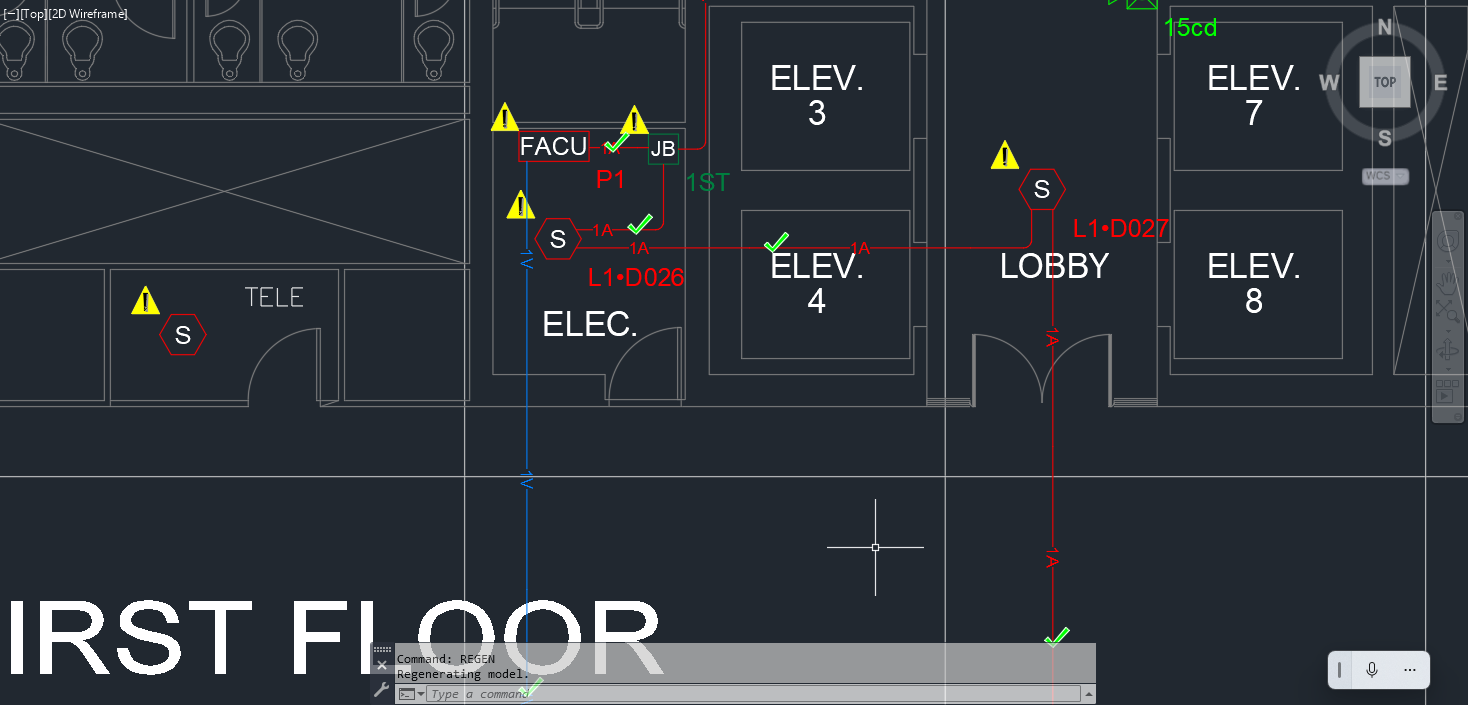

You expect to see yellow alert triangles as shown below when connecting devices to circuits:

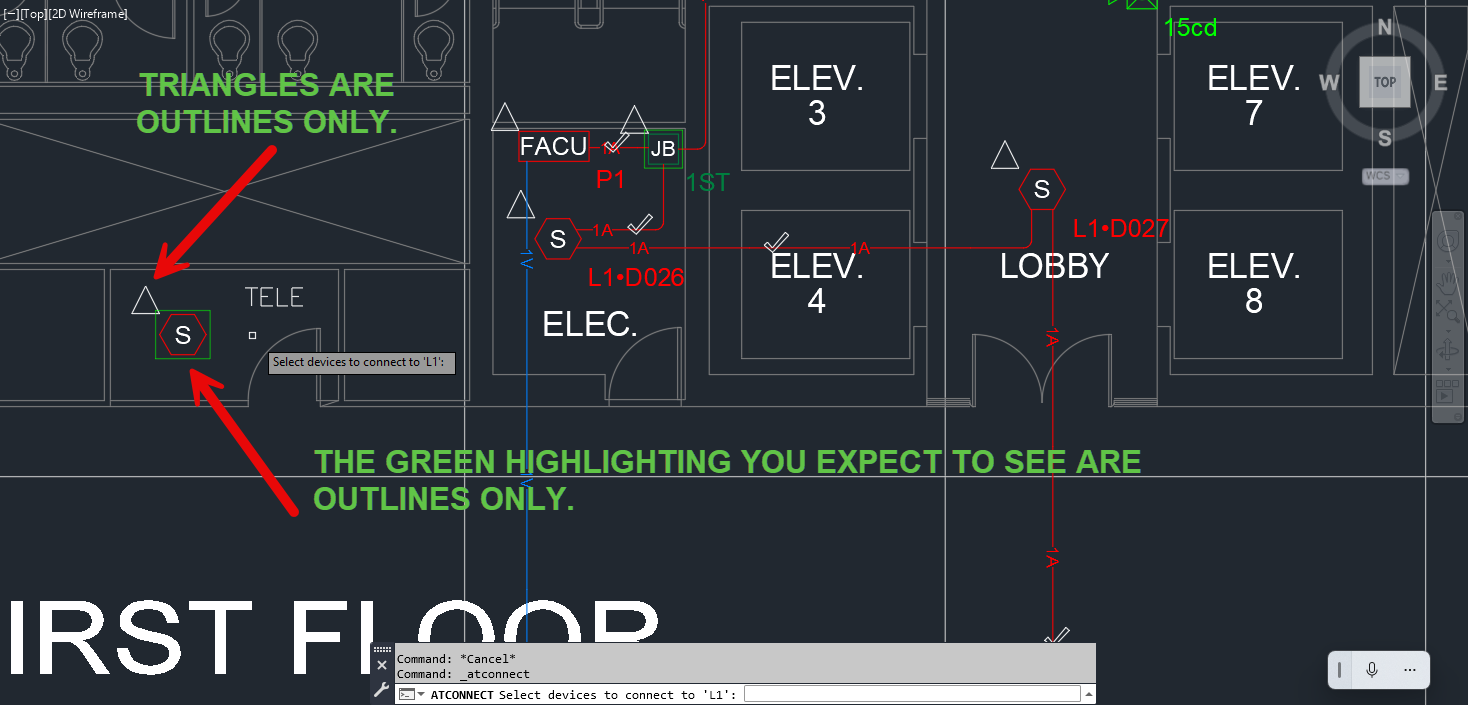

On rare occasions you will encounter a drawing where they are shown as outlines only (as shown below):

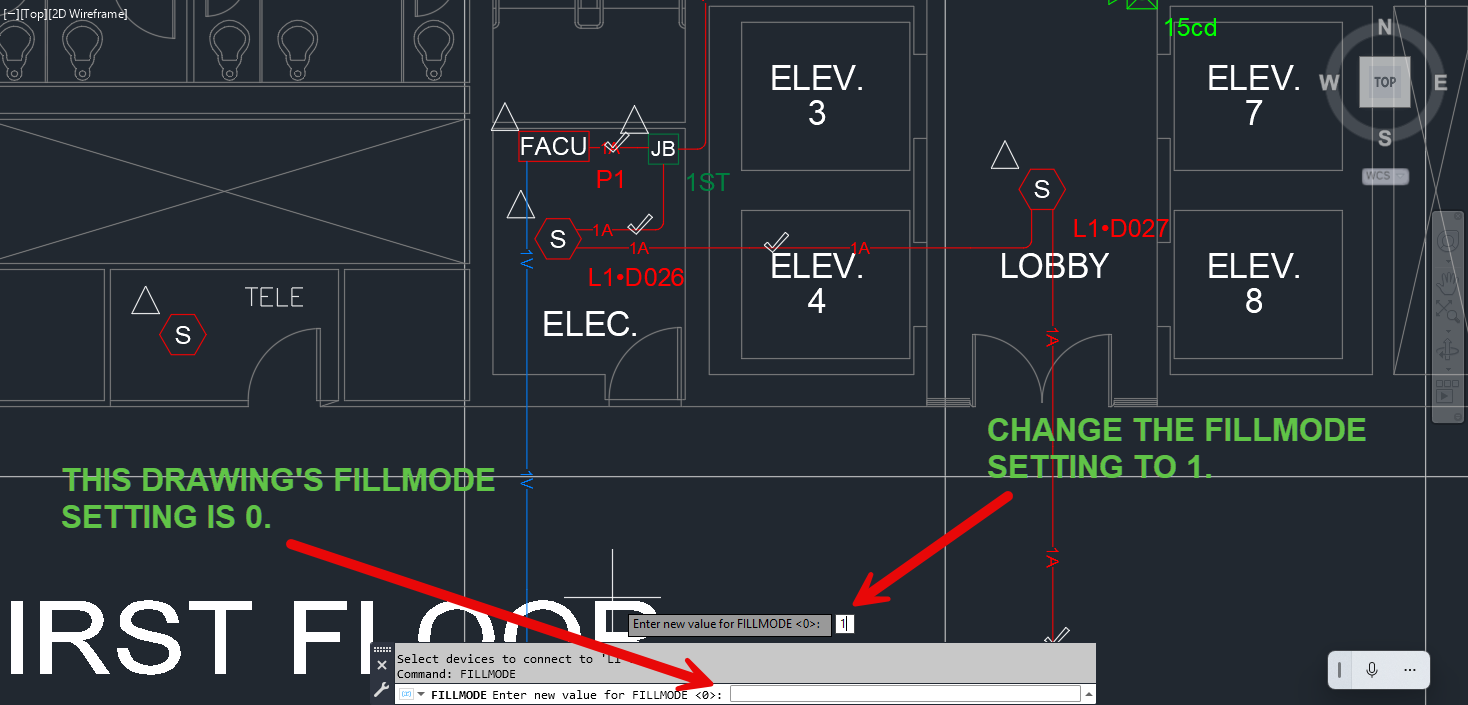

This is caused by the FILLMODE setting on this specific AutoCAD drawing. The Setting can be changed as follows:

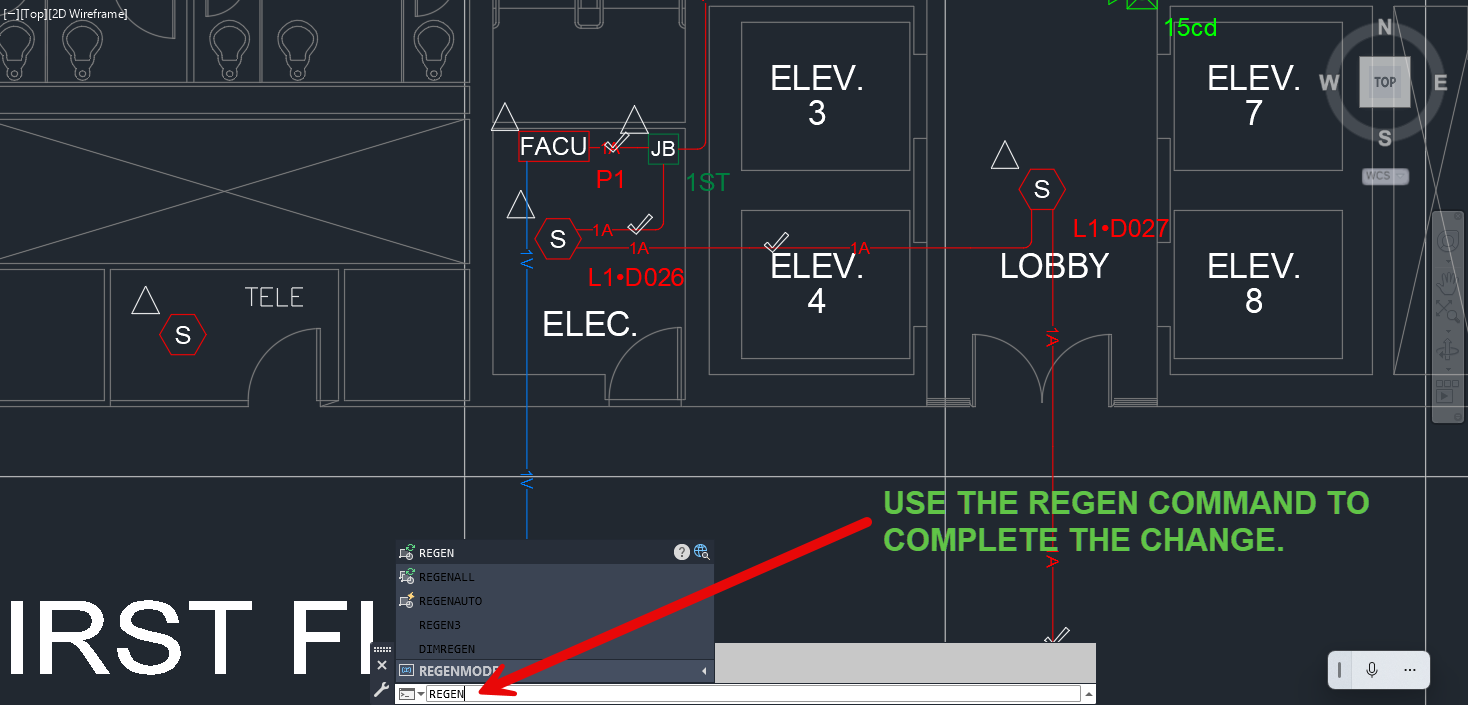

After changing the FILLMODE setting, you must refresh the display with the REGEN command.

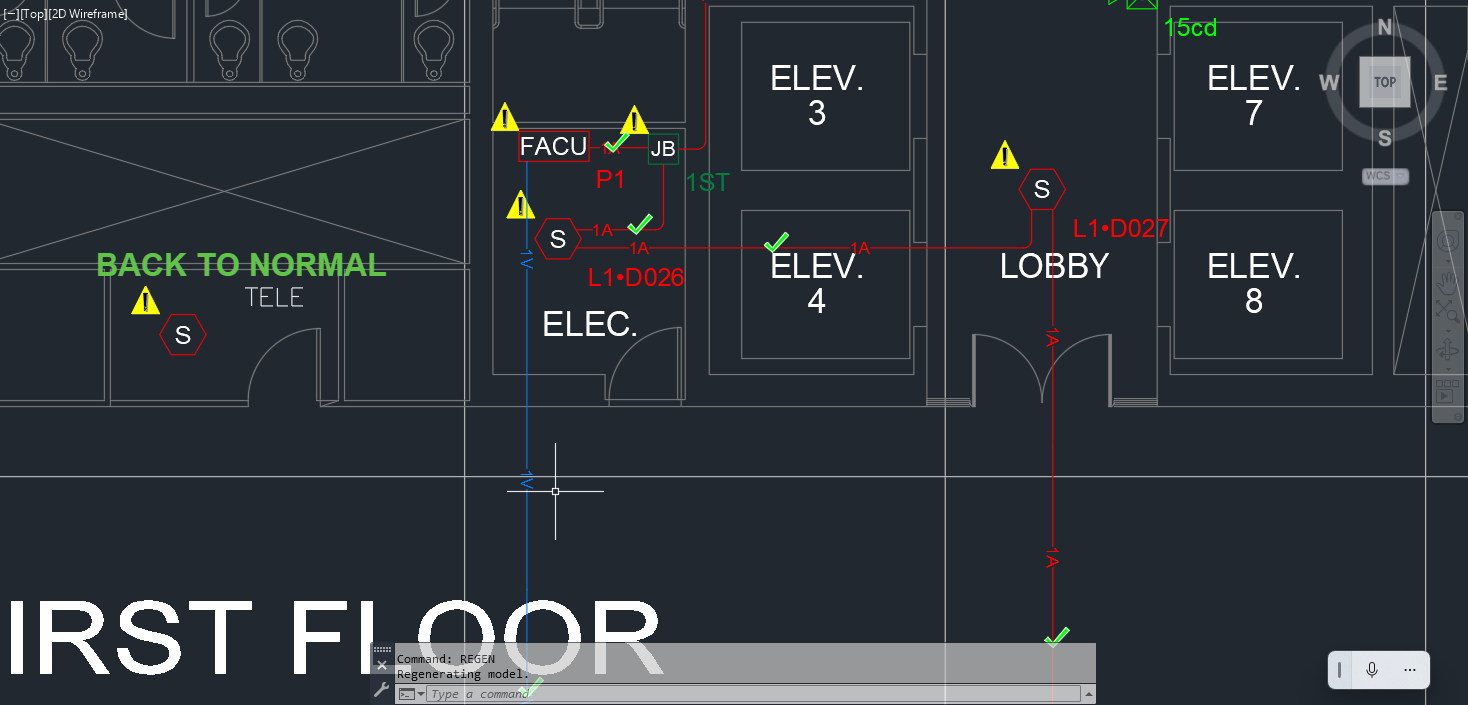

Now back to normal
