Setting Default Multileader and Text Styles for FireCAD Elements



FireCAD uses AutoCAD settings to control some multileaders and text labels. To change these settings, follow the steps below:

After making these changes, go back to the drawing and refresh all labels or validate devices. The changes you made should update.

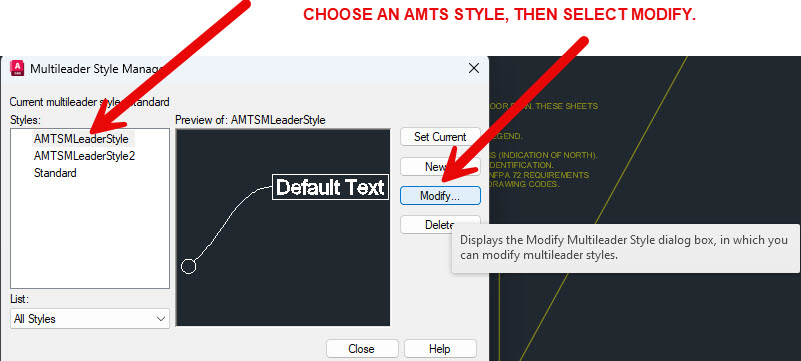

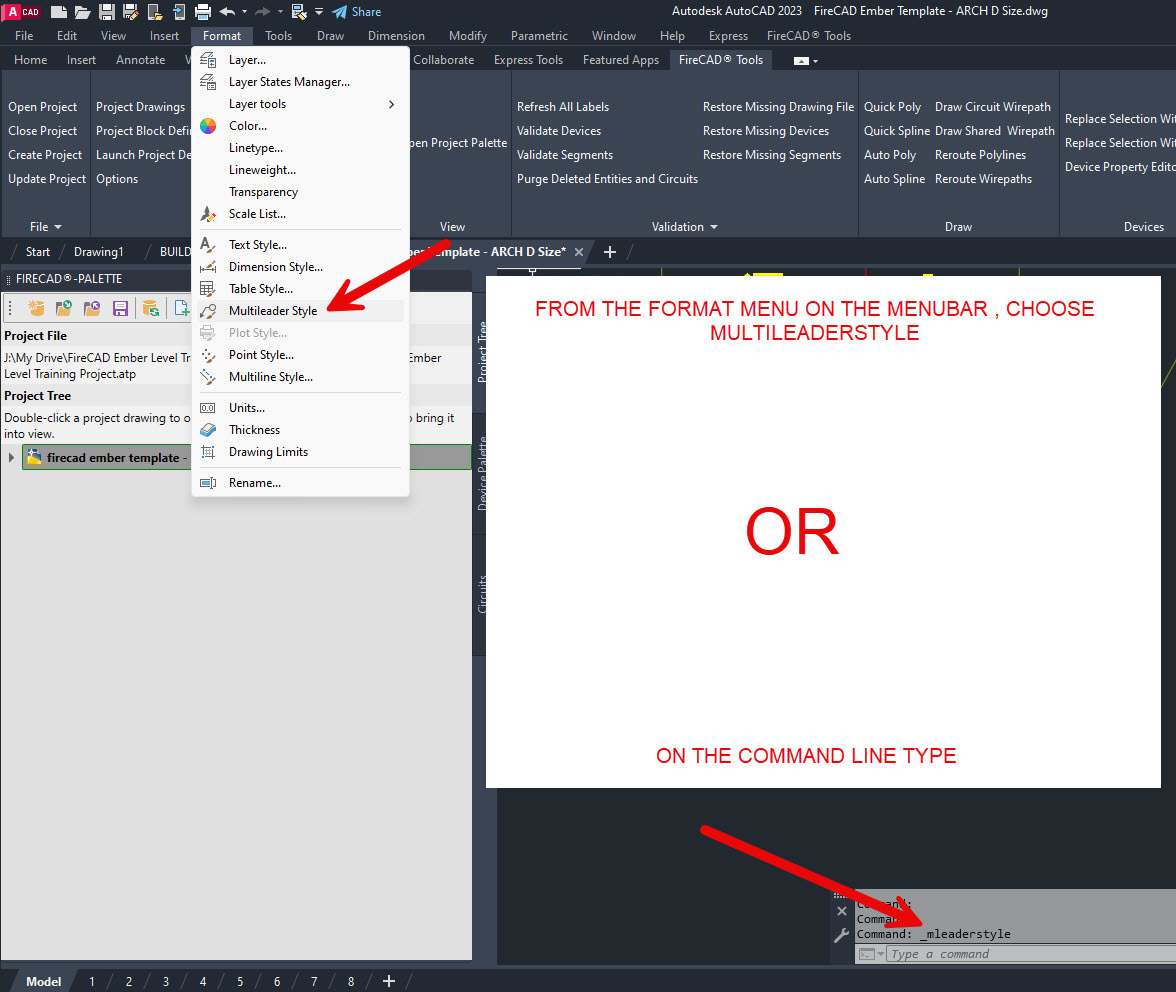

SETTING A MULTILEADER STYLE

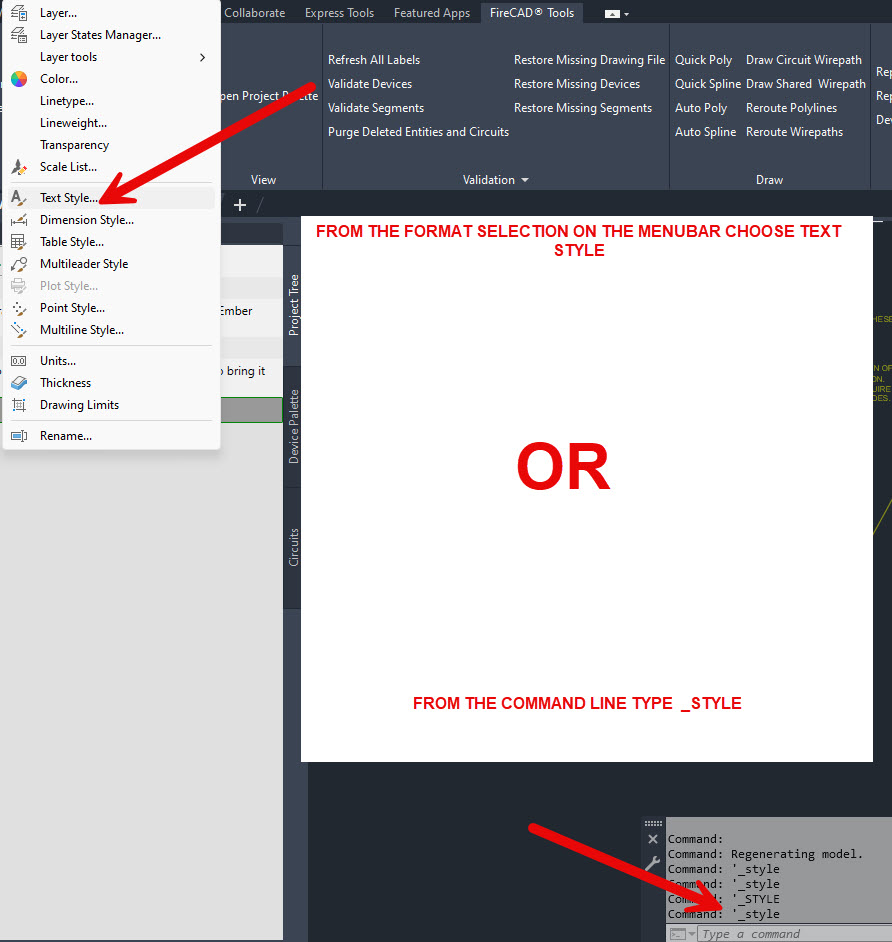

SETTING A TEXT STYLE

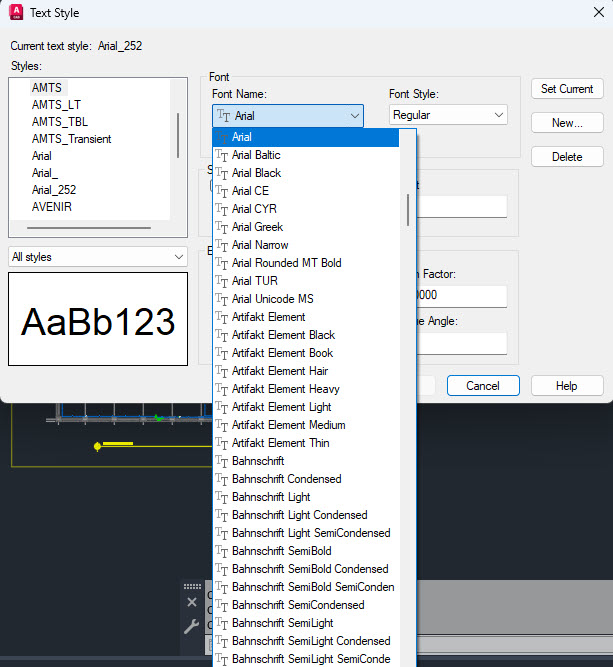

THERE ARE FOUR TYPES OF AMTS TEXT STYLES TO CHOOSE FROM

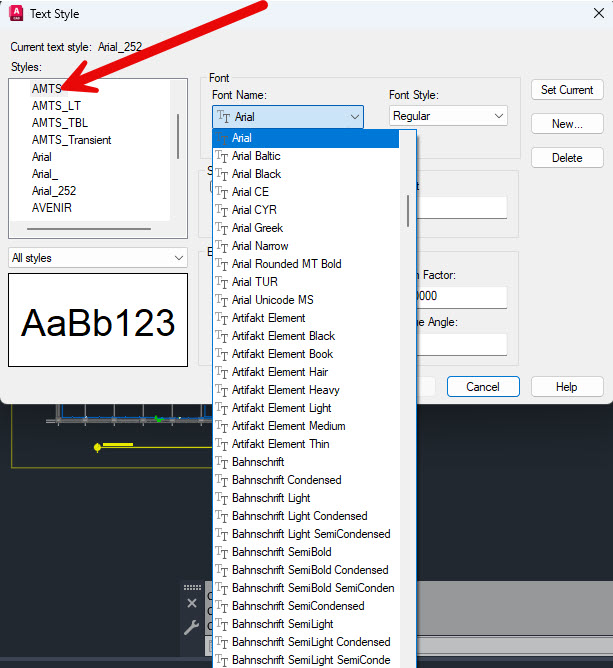

THE AMTS TEXT STYLE WHICH AFFECTS LABELS ON DEVICES

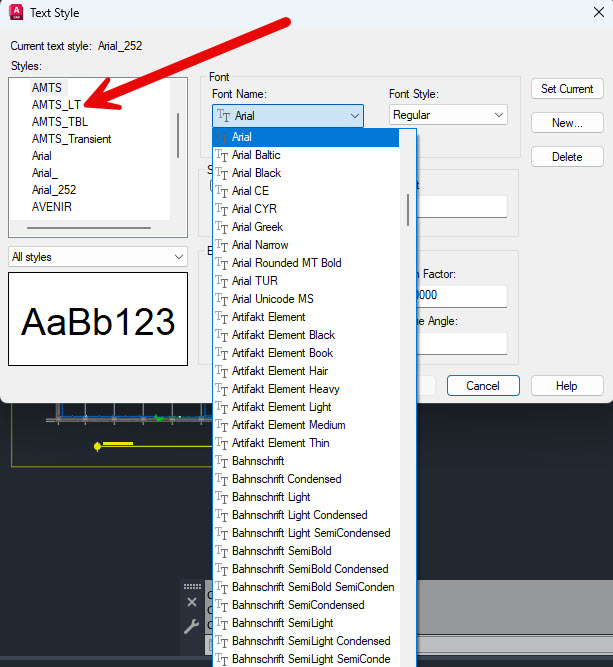

THE AMTS LT TEXT STYLE AFFECTS LINE TYPE LABELS

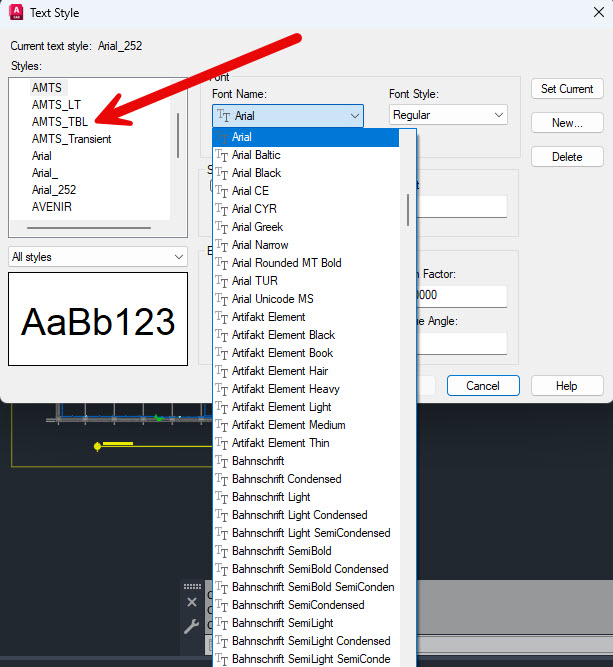

THE AMTS TBL TEXT STYLE AFFECTS FIRECAD TABLES

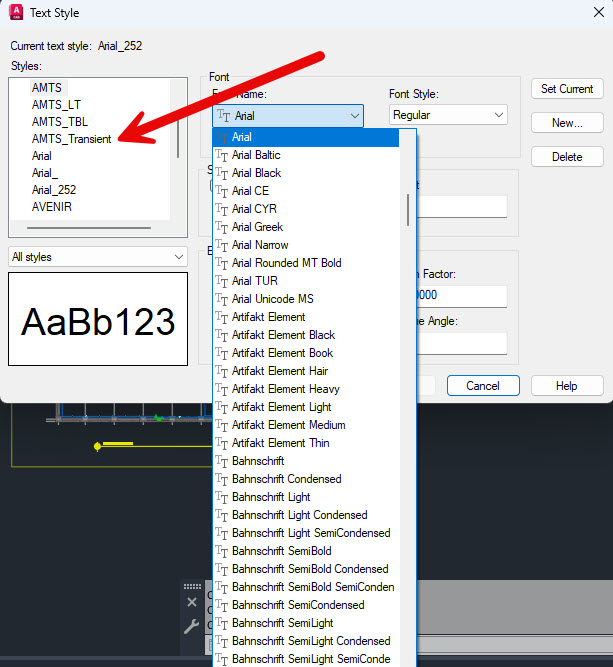

THE AMTS TRANSIENT TEXT STYLE AFFECTS TRANSIENT GRAPHICS SUCH AS

LABELS SHOWN WHEN YOU ARE SETTING RISER DEVICE ELEVATIONS.
