We get many questions regarding how to control the visibility of the letters used on the FireCAD-generated linetypes used to define cable/wire assignments.
The most common question is "why are the letters not showing up?"
CONTROLLING THE APPEARANCE WITH THE "MSLTSCALE" AND THE "PSLTSCALE" COMMANDS
IN MODEL SPACE - The view below shows lines not showing lettering in model space.
- To remedy this, toggle the AutoCAD MSLTSCALE setting to 0 as shown above.

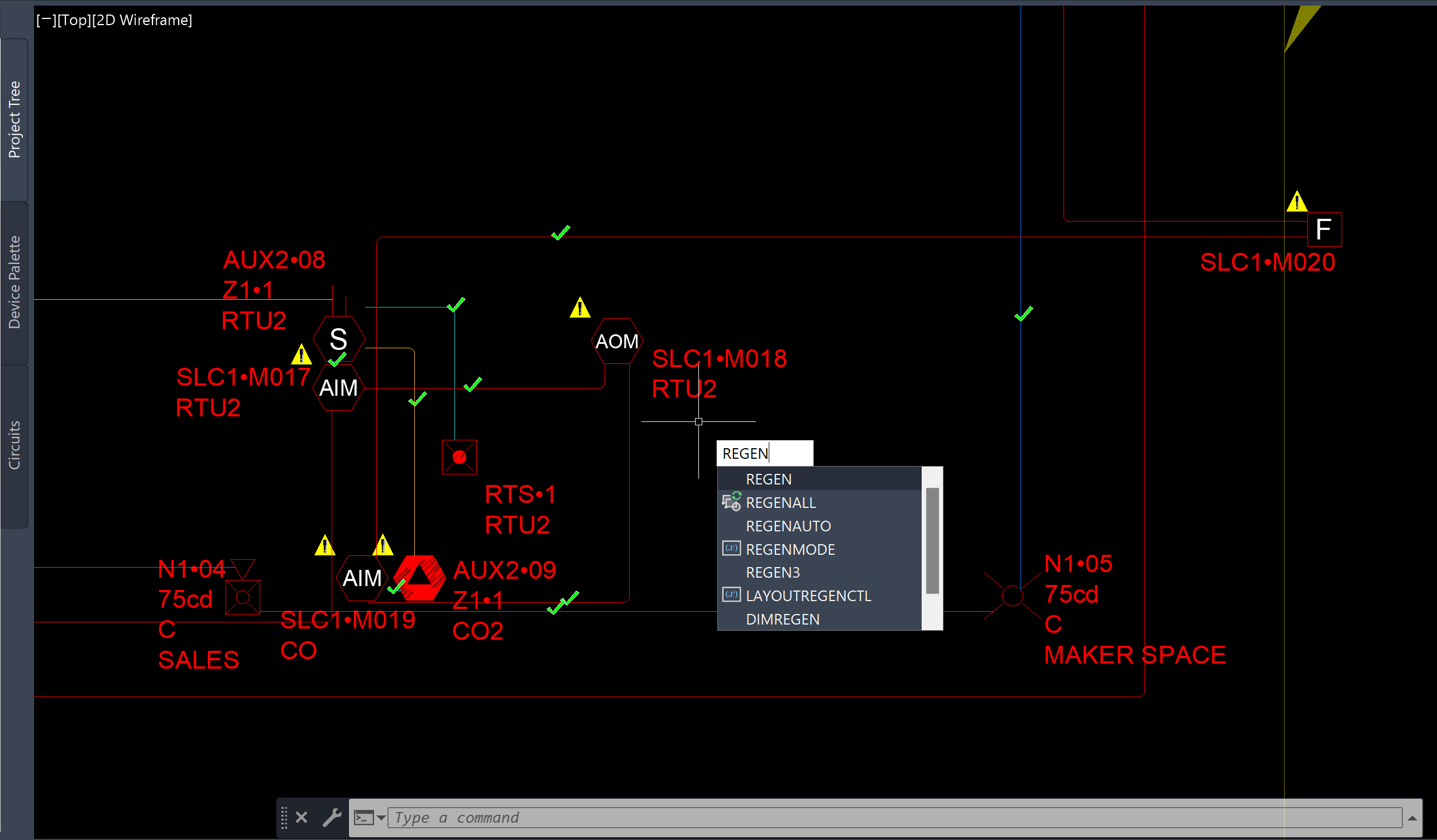

- Then use the REGEN or REGENALL command.
- The result is that linetype lettering is refreshed to be visible. See below.
IN PAPER SPACE - The view below shows lines not showing lettering in paper space.
- To remedy this, toggle the AutoCAD PSLTSCALE setting to 0 as shown above.
- Then use the REGENALL command.
- Change setting to 0
- Use the AutoCAD REGENALL command
- The result is that linetype lettering is refreshed to be visible. See below.
